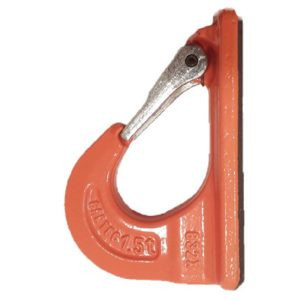

Weld-On Bucket Hooks

Weld-On Bucket Hooks

  • Safety Factor: 4
  • Capacity reduction required for asymmetric loads (see reference table).
  • Must align with the pull direction.
  • Rated for 20,000 full-load lifts.
  • High tensile steel construction with epoxy paint finish.
  • 100% magnaflux and fatigue tested (20,000 cycles).
  • Certified to GS-OA 15-04 and EN 1677 standards.
  • Complies with Machinery Directive 2006/42/EC for safe lifting.

Part # WLL metric tons A (in) B (in) C (in) D (in) E (in) F (in) G (in) H (in) Weight (lbs)
C832X015 1.5 0.98 3.11 1.1 1.57 0.59 1.58 0.39 4.61 1.54
C832X025 2.5 1.18 3.98 1.38 1.85 0.83 1.97 0.39 5.79 3.09
C832X040 4 1.46 4.96 1.69 2.48 1.02 2.36 0.59 6.73 5.95
C832X067 6.7 1.89 6.22 2.13 2.8 1.3 2.76 0.59 8.19 10.58
